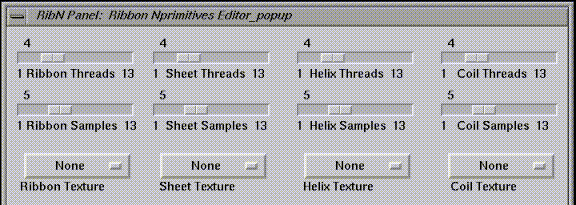

Ribbon N-primitives Panel Widget.

Uses Motif Widgets ( Choice, Toggle, Scale, Push ) to adjust complexity (#polygons, texture) of ribbon drawings.

Widget Name (Widget Type) --- description of function

• Ribbon Threads (Scale)
  -- sets # of threads (or subdivisions) across the ribbon's width for the current selection of Ribbon Lists.
• Sheet/Helix/Coil Threads (Scale)
  -- like Ribbon Thread, but apply only to that secondary structure type.
• Ribbon Samples (Scale)
  -- sets the # of curve samples along each residue's length for the current selection of Ribbon Lists.
• Sheet/Helix/Coil Samples (Scale)
  -- like Ribbon Samples, but apply only to that secondary structure type.
• Ribbon Textures (Scale)
  -- sets rudimentary texturing of residues for the current selection of Ribbon Lists.
• Sheet/Helix/Coil Textures (Scale)
  -- like Ribbon Textures, but apply only to that secondary structure type.
• Panel Help (Push)
  -- show this help screen

Hints:

Also see general information on ribbon drawing panels.
Also see other types of and general information on Control Panels.
