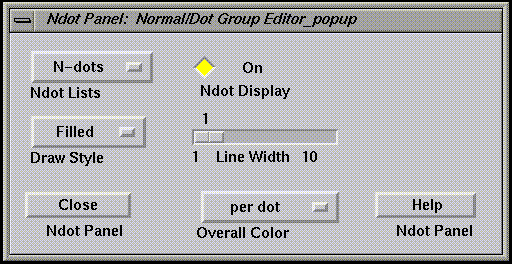

Ndot Panel Widget.

Uses Motif Widgets ( Choice, Toggle, Scale, Push ) to adjust properties of groups of normal vectors/dots in your model.ndots list.

Currently, all groups are read in as ascii *.dot files. (See Data Preparation).

Widget Name (Widget Type) --- description of function

• Ndot Lists (Choice)
  -- select `N-dots' to refer to all, else choose individual groups.
• Ndot Display (Toggle)
  -- visibility toggle for current Ndot List choice.
• Draw Style (Choice)
  -- select one of: Square | Round(antialiased) for selected group.
• Line Width (Scale)
  -- width in pixels.
• Overall Color (Choice)
  -- select a color for the entire group, or use the individual dot colors.
• Close Panel (Push)
  -- dismiss the panel
• Panel Help (Push)
  -- show this help screen

Hints:

Also see other types of and general information on Control Panels.
